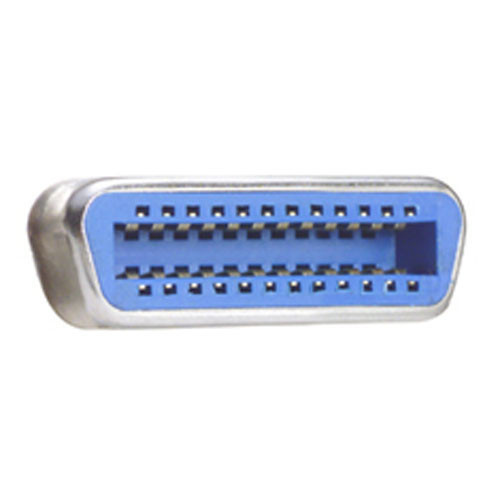

Female IEEE-488 Connector, Right Angle PC Terminals

These hard to find connectors are ideal for replacement use or for the "do it yourself" user. Choose from solder cup, straight PCB, or right angle PCB style female connectors. Supplied with required female mating hardware and mates with any male GPIB connector. Contacts are gold plated, connector insulator is UL94V-0 rated.

Features

• Gold plated contacts provide reliable connections with repeated mating cycles
• Features Right Angle PC Terminals
• Mates with any GPIB male connector
• Standard M3.5 x 0.6 female screwlocks provide tight connection when mated to male thumbscrews
• UL94V-0 rated connector insulator satisfies flammability requirements

Application

• Data Acquisition
• Instrument Control
• Test and Measurement

Downloads:

• 2D Drawing (.pdf)
• 3D CAD Model (.step)
