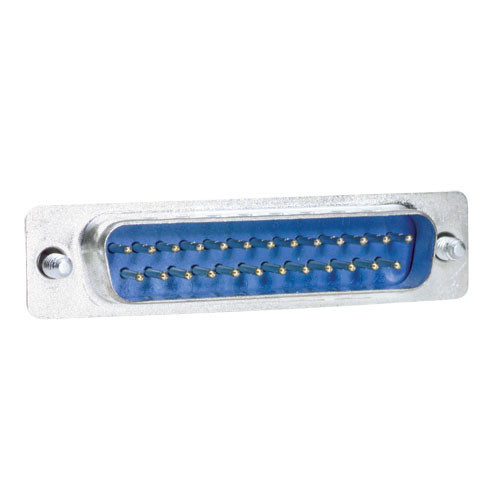

Deluxe Null Modem Reverser Cable, DB25 Male / Female, 10.0 ft

The CSNULL series of cable assemblies features the same construction as the CSMN series but are wired to the most common null modem wiring schemes. The transmit data and receive data signals are crossed to allow two DTE or DCE devices to communicate. All assemblies utilize 26 AWG stranded conductors with foil shielding for flexibility and performance.

Backshells are fully molded with copper shielding for better immunity to EMI/RFI. Mating hardware is 4-40 thumbscrews which makes securing without tools quick and easy.

Features.

• 360 degree fully shielded for protection against EMI/RFI
• Gold plated contacts provide reliable connections with repeated mating cycles
• Pins 2 and 3 crossed (all else straight through) to form a "Reverser" Null Modem wiring scheme
• Wired to the most common null modem wiring schemes
• Allows two DTE or DCE devices to communicate with no conflict in data transmission

.

Application

• File transfer
• DTE/DCE communication
• RS-232
• Serial applications

Downloads:

• 2D Drawing (.pdf)
• 3D CAD Model (.step)
