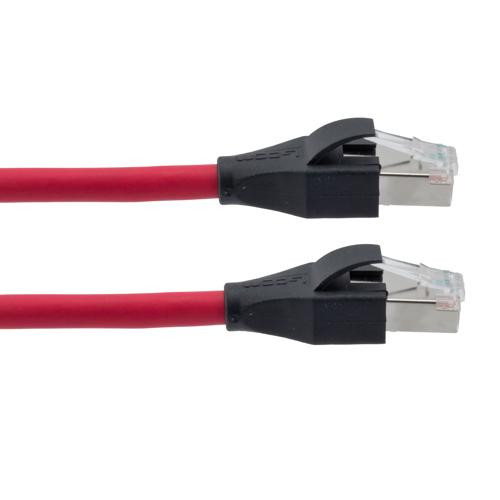

Category 7 10gig Ethernet Cable Assembly, S/FTP Shielded Pairs, RJ45 Male/Plug, 26AWG Stranded, LSZH, Red, 1M

L-com's double-shielded TRD795ZRED-1M Category 7 Ethernet cable assembly features construction with an overall braid shield around individually shielded twisted pair (S/FTP). This 10gig Category 7 Ethernet cable with an LSZH (low smoke zero halogen) jacket in red is verified by IEC 60332-1, 60754, and 61034, making it ideal for high-speed networks. This 1-meter Cat7 Ethernet cable is compatible with up to 10-gig Cat7 or Category 6a applications and accessories. This S/FTP braid Ethernet cable assembly from L-com 26AWG conductors provides flexibility in a patch cable environment. The RJ45 male-to-plug wiring of the TRD795ZRED-1M Cat7-rated Ethernet cable complies with TIA specifications.

This 1-meter double-shielding Category 7 Ethernet cable assembly is ideal for high EMI/RFI environments. The Category 7 Ethernet cable is suitable for applications including shipboard, aircraft, aerospace, defense, telecommunications, voice/data networking, processing networks, and high-speed data centers. This L-com red TRD795ZRED-1M Ethernet cable has a 30V rating and an operating temperature range of -10 to 80°C. This LSZH jacketed 10gig Ethernet cable individually shielded pairs keep the overall cable diameter small and cable available in multiple colors, lengths, and jacket types.

Features

• Category 7 rated cable assembly with overall braid shield around individually shielded twisted pairs (S/FTP)
• IEC 60332-1, 60754 & 61034 verified LSZH (low smoke zero halogen) jacket in red
• 26AWG Stranded conductors for flexibility
• Compatible with up to 10gig Category 7 and Category 6a applications and accessories
• 30V rating with -10° to +80°C operating temperature

Application

• 10GBASE-T - 10/100/1000/10000 Ethernet - IEEE 802.3an
• Category 7 - Category 6a, 10gig applications
• Shipboard, aircraft, aerospace and defense
• High speed data center applications and processing networks
• Telecommunications and voice/data networking

Downloads:

• 2D Drawing (.pdf)
