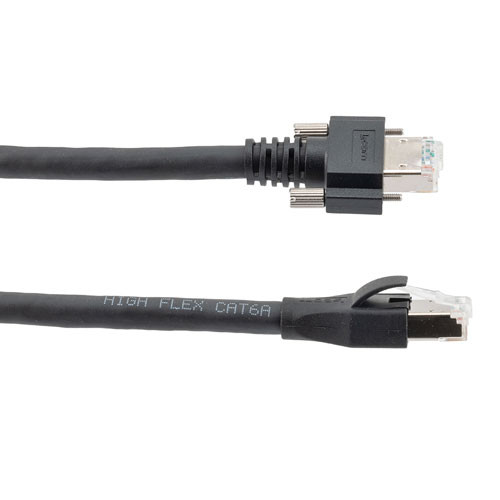

Category 6a GigE SF/UTP PVC High Flex Ethernet Assembly, GigE/RJ45, 1M

The L-com TRG619-C6B-1M is a high flex Category 6 Ethernet GigE machine vision cable assembly that is designed for factory automation, robotics, and camera industries. This Ethernet cable assembly has a PVC jacket with VW-1 flame rating. This machine vision cable is built with double shielded SF/UTP design with overall braid and foil shields. This Ethernet cable assemblies come with GigE/RJ45 connectors built to the machine vision standard that can be used in machine vision cameras and POE applications.

L-com's TRG619-C6B-1M is a round, stranded Cat6 cable and the GigE RJ45 connectors include screws to prevent unintentional disconnections from shock, vibration, gravity, and other factors. This Ethernet cable has a length of 1 meter. The Category 6 cable is built with a 26 AWG stranded copper conductor and has an operating temperature range of -10 to +80 deg C fixed and -10 to 60 deg C moving. This high flex cable is drag chain rated for up to 10 million cycles at 8 times the overall diameter of the cable and can be used in both fixed or continuous motion applications.

Features

• Built to accomodate modern Cat6 speeds capable of 1Gig transfer speed
• Cable is built for factory automation and camera applications
• Double shielded with overall braid and foil shielded design for maximum protection from EMI/RFI
• Built with 26AWG conductors and high flex PVC jacketed cable
• GigE RJ45 connectors are built to machine vision standards

Application

• Factory Automation
• Harsh Environment Applications
• Industrial Ethernet
• Machine Vision
• PoE

Downloads:

• 2D Drawing (.pdf)
