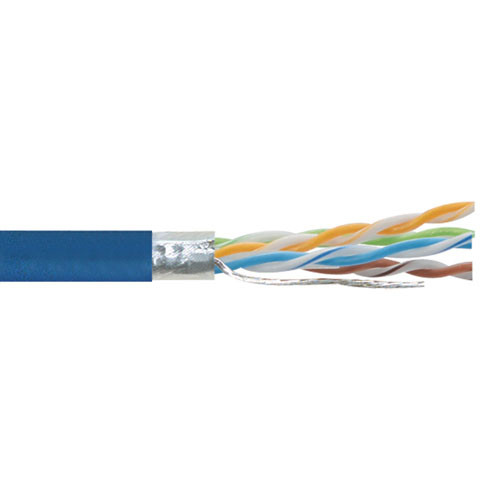

Cat6A F/UTP CMR 28AWG 4-Pair Stranded Slim-Line Blue, 1KFT

L-com's slim-line Ethernet bulk cables are the ideal solution for high density patching applications. These cables feature a patent-pending spline-free design to reduce their diameter and 28AWG stranded conductors making them a perfect solution for applications that require a smaller, more flexible cable than a standard patch cord. A performance rating of Category 6A allows these cables to support data rates of up to 10Gbps for demanding high-speed voice, video and data applications. Available with either a Riser (CMR) rated PVC jacket, a dual rated CM-LSZH (low smoke zero halogen) jacket or a high temperature +105°C CMP Plenum rated jacket.

Features

• 38% smaller cross sectional area and a 33% reduction in weight compared to standard patch cable is smaller, more flexible to improve cable density and provide less cross-section area promoting air flow and rack ventilation
• Meets Category 6A plug to plug electrical and transmission parameters up to 56 meters (184 ft)
• Foil Shielded (F/UTP) with drain wire design for EMI/RFI protection
• Nominal cable OD of 0.186"; Nominal conductor/insulation OD of 0.031"; The recommended RJ45 plug for this C6A F/UTP 28AWG slim-line cable is TSP8028C6A

Application

• Data centers and enterprise communications
• High-density patching
• Confined space patching
• High-speed Ethernet transmission
• 10Gbps high-speed voice, video and data applications

Downloads:

• 2D Drawing (.pdf)
