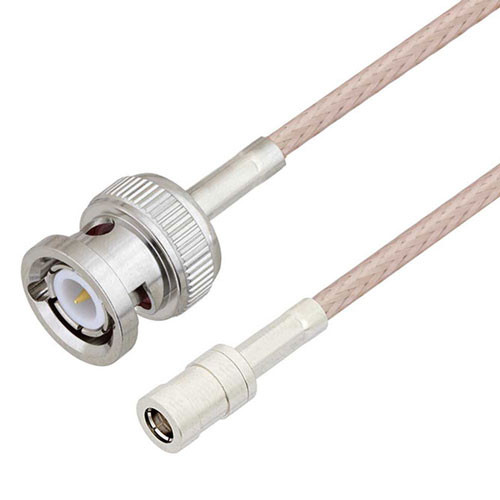

BNC Male to SMB Plug Cable Assembly using RG316-DS Coax, 4 FT

These high-quality RF coax cable assemblies can be used for telecom, military / defense, laboratory test & measurement, industrial / commercial and many other applications. These RF coaxial cable assemblies are built with BNC connection on one end and SMB connection on the other. This BNC to SMB cable from L-com has a male to plug gender combination. BNC plug to SMB male cable assembly LCCA31398-FT4 is manufactured with a flexible coax.

These flexible BNC to SMB cable assemblies use RG316-DS coax (RG316-DS flexible) and are double shielded. This radio frequency cord is wrapped in an FEP Jacket which has a 0.114 inch diameter and provides low loss with a maximum VSWR of 1.4:1. L-com’s BNC to SMB Male/Plug cable operates at a maximum frequency of 3 GHz. This product can also be called a SMB plug to BNC male cable assembly because it can be used in the opposite direction.

Downloads:

• 2D Drawing (.pdf)
