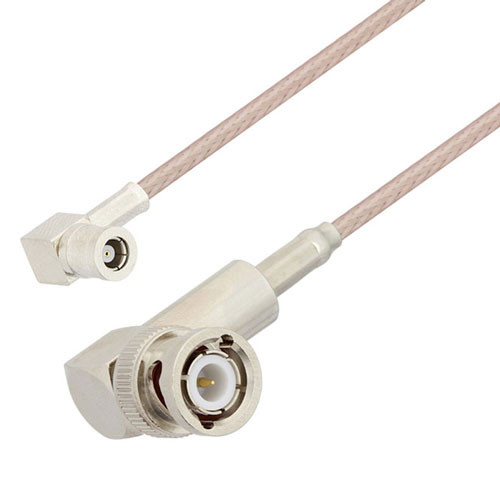

BNC Male Right Angle to SMB Plug Cable Assembly using RG316 Coax, 2 FT , LF Solder

These high-quality RF coax cable assemblies can be used for telecom, military / defense, laboratory test & measurement, industrial / commercial and many other applications. These RF coaxial cable assemblies are built with right angle BNC connection on one end and SMB connection on the other. This right angle BNC to SMB cable from L-com has a male to plug gender combination. BNC plug to SMB male cable assembly LCCA31353-FT2 is manufactured with a flexible coax.

These flexible BNC to SMB cable assemblies use RG316 coax (RG316 flexible) and are single shielded. This radio frequency cord is wrapped in an FEP jacket which has a 0.098 inch diameter and provides low loss with a maximum VSWR of 1.4:1. L-com’s BNC to SMB Male/Plug cable operates at a maximum frequency of 2 GHz. This product can also be called a SMB plug to right angle BNC male cable assembly because it can be used in the opposite direction.

Features

• 50 Ohm RF (Radio Frequency) transmission in high temperature environments
• Stranded center conductor of RG316/U enhances flexibility
• Gold plated center contacts minimize signal loss
• Same day shipping and custom length available upon request

Application

• Test and Measurement
• Wireless infrastructure
• Data Transmission
• GPS
• RFID
• General Purpose

Downloads:

• 2D Drawing (.pdf)
