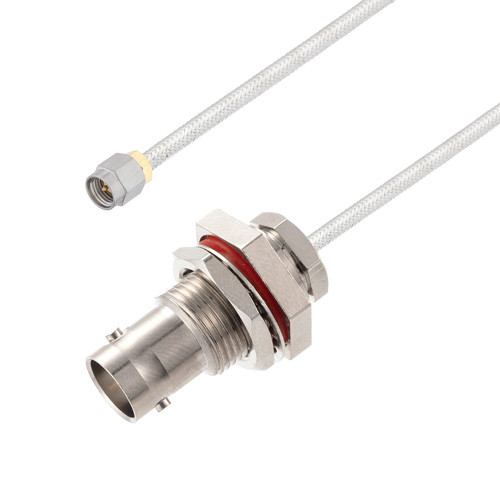

BNC Female Bulkhead to SMA Male Cable Assembly using LC141TB Coax, 10 FT

These high-quality RF coax cable assemblies can be used for telecom, military / defense, laboratory test & measurement, industrial / commercial and many other applications. These RF coaxial cable assemblies are built with BNC bulkhead connection on one end and SMA connection on the other. This BNC to SMA cable from L-com has a female to male gender combination. This BNC female to SMA male coaxial assembly part number LCCA30401-FT10 can also be known as BNC jack to SMA plug cable assembly when using alternate gender names.

BNC jack to SMA plug cable assembly LCCA30401-FT10 is manufactured with a formable coax. These formable BNC to SMA cable assemblies use LC141TB coax and are single shielded. Maximum frequency for these BNC to SMA F/M cables is 1 GHz. This product can also be called a SMA male to BNC female bulkhead cable assembly because it can be used in the opposite direction.

Features

• General Purpose
• Laboratory Use
• System Interconnect

Application

• Max Frequency 1 GHz
• Shielding Effectivity > 100dB
• PTFE Dielectric with 69.9% VoP
• Hand Formable
• Tin Filled Copper Braid Outer Conductor

Downloads:

• Datasheets
• 3D CAD Model (.step)
