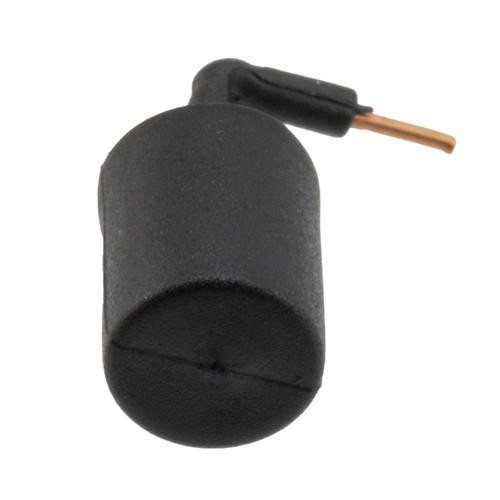

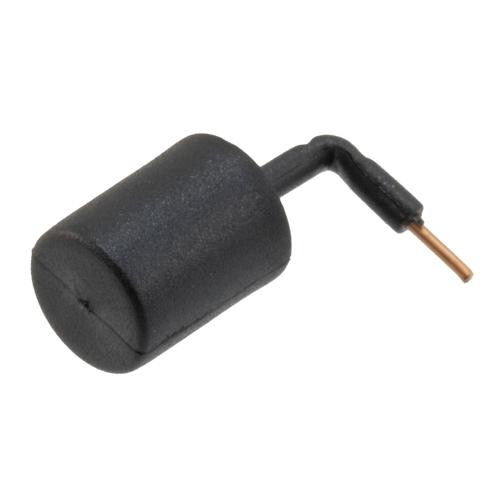

915 to 918 MHz Permanent Mount Mini Antenna Right Angle Solder Post

The LCANRBD1058 is a high-quality single-band permanent mount mini antenna with -0.5 dBi nominal gain and has a frequency range of 915 MHz to 918 MHz. L-com’s omnidirectional embedded through hole permanent mount mini antenna is 0.6 inches tall and 0.5 inches wide. The LCANRBD1058 permanent mount mini antenna from L-com features a Right Angle Solder Post connector with an input VSWR (voltage standing wave ratio) of 2:1. L-com’s linearly polarized antenna can operate at temperatures ranging from -40 °C to 60 °C.

Features

• 915 MHz to 918 MHz
• -0.5 dBi Gain
• Right Angle Solder Post connector
• Embedded Through Hole
• VSWR 2:1
• Linear polarization

Application

• LPWAN
• ISM
• LoRaWAN
• Sigfox
• Weightless-P
• WiFi HaLow
• Fixed and Mobile Devices

Downloads:

• Datasheets
• 2D Drawing (.pdf)
• 3D CAD Model (.step)
