900 MHz 13 dBi SS Yagi Antenna RP SMA Plug Connector

The HG913Y High-Performance Yagi Antenna combines high gain with a wide beam-width. They are ideally suited for directional applications in the 900MHz ISM and GSM bands. Typical applications include 900MHz Wireless LAN, SCADA, Wireless Video Links, 900 MHz Cellular, Non Line of Sight (NLOS) applications and point to multi-point systems.

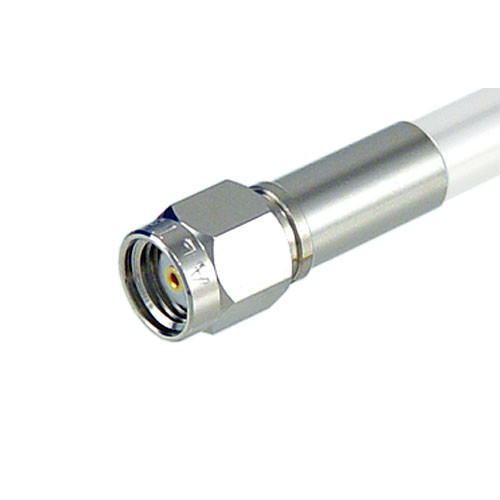

External interference of this antenna is minimized due to the excellent front to back ratio. These antennas come with a 18" coax lead terminated with a Reverse-Polarity SMA Plug connector. It can be installed for either vertical or horizontal polarization.

Rugged and Weatherproof This antenna features a heavy-duty 1/2" stainless steel boom and solid 1/8" elements. Secure mounting is assured by a 1/8" thick plated steel mounting plate and two plated steel U-bolts.

Features

• Heavy duty steel construction
• 13 dBi gain
• All weather operation
• Heavy-duty 1/2" stainless steel boom
• Superior performance

Application

• 900MHz Cellular
• Point to multipoint & Non Line of Sight (NLOS) applications
• RFID & SCADA
• Wireless Video Links
• 900MHz ISM Band & GSM Wireless LAN systems
