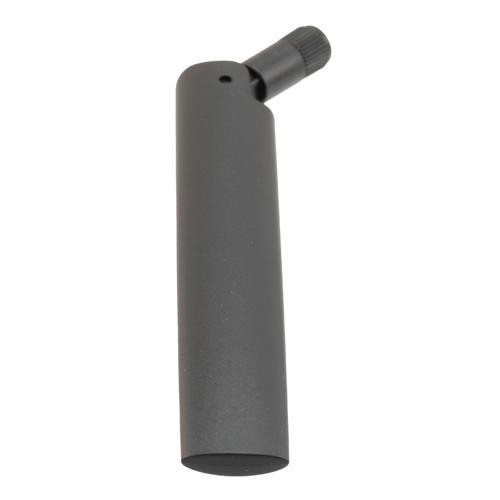

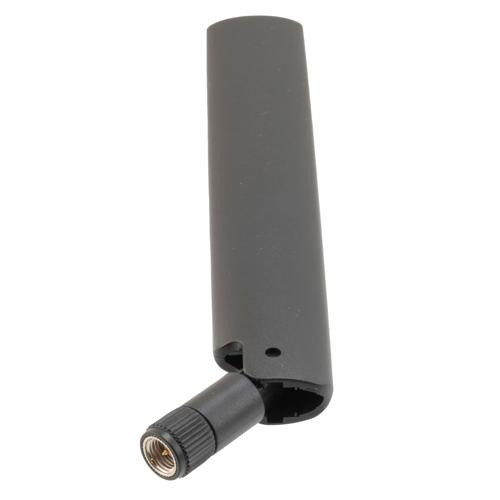

862 to 928 MHz Rubber Duck Antenna 3 dBi SMA Male Tilt Swivel

The LCANRBD1057 is a high-quality dual-band rubber duck antenna with 3 dBi nominal gain and has a frequency range of 862 MHz to 928 MHz. L-com’s omnidirectional tilt/swivel rubber duck antenna is 5.34 inches tall and 0.79 inches wide. The LCANRBD1057 rubber duck antenna from L-com features a SMA Male connector with an input VSWR (voltage standing wave ratio) of 2.5:1. L-com’s linearly polarized antenna can operate at temperatures ranging from -40 °C to 60 °C.

Features

• 862 MHz to 928 MHz
• 3 dBi Gain
• SMA Male connector
• Tilt/Swivel
• VSWR 2.5:1
• Linear polarization

Application

• LPWAN
• ISM
• LoRaWAN
• Sigfox
• Weightless-P
• WiFi HaLow
• Fixed and Mobile Devices

Downloads:

• Datasheets
• 2D Drawing (.pdf)
• 3D CAD Model (.step)
