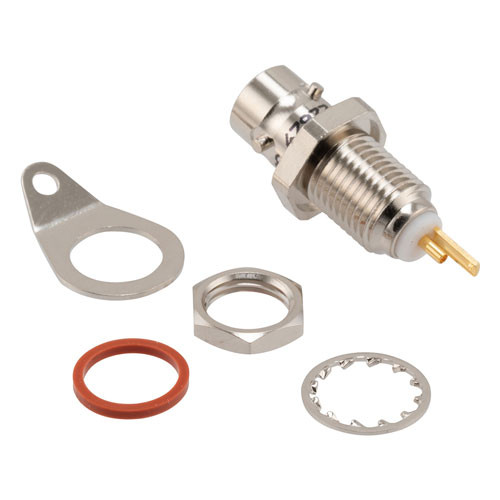

78 Ohm TRS 3-Lug NI Bulkhead Front Mount Jack 1553 Connector Solder/Solder for TRS 3-Slot Plug

L-com’s LCCNMSB00009 is a coax connector with a 78 Ohms impedance and uses solder/solder as an attachment method. This coax connector has an interface type TRS 3-lug jack that is compatible with TRS 3-slot Plug cables. This TRS 3-lug connector has a bayonet coupling design that can withstand severe shocks and vibrations. This TRS 3-lug jack coax connector operates at a maximum frequency of 500 MHz.

This bayonet 1553 RF connector can operate at temperatures ranging from -55 to 200 degrees C. This LCCNMSB00009 connector from L-com uses a beryllium copper inner contact and a phosphor bronze outer contact. This bayonet coax connector has a brass body with nickel plating.

This high-quality LCCNMSB00009 connector from L-com features an ASTM-B-733 body plating specification. This TRS 3-lug RF connector with coax termination has a 0.100 dB maximum insertion loss. This TRS 3-lug connector has a gold 30 micro inches center contact plating.

Features

• Twinax Connectivity
• Bayonet Coupling

Application

• Robust Design
• Ease of Use
• Use in High Shock and Vibration Environment

Downloads:

• Datasheets
• 3D CAD Model (.step)
