5150 MHz to 5850 MHz V/H Dual Polarization Flat Panel, 18 dBi gain, Ruggedized, 2 X N Female Connectors
5150 MHz to 5850 MHz V/H Dual Polarization Flat Panel, 18 dBi gain, Ruggedized, 2 X N Female Connectors

5150 MHz to 5850 MHz V/H Dual Polarization Flat Panel, 18 dBi gain, Ruggedized, 2 X N Female Connectors

$92.75
$88.11
{"without_tax":{"formatted":"$88.11","value":88.11,"currency":"USD"},"tax_label":"Tax","rrp_without_tax":{"formatted":"$92.75","value":92.75,"currency":"USD"},"saved":{"formatted":"$4.64","value":4.64,"currency":"USD"}}
(You save 5.00% )
SKU: HG5158DP-18
Lead Time (Days): 91
Weight: 2.420000 LBS
Country of Origin: CN
Schedule B: 8517700000
ECCN: EAR99
Adding to cart… The item has been added
Description

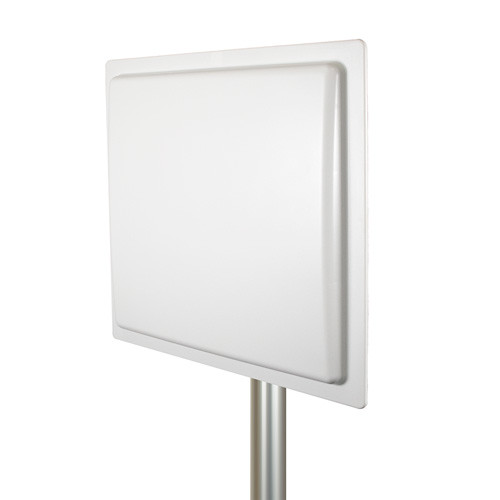

The L-com HG5158DP-18 is a high performance flat panel antenna engineered for superior performance and specifically designed for rugged environments with a low profile aesthetically pleasing design. L-com's HG5158DP-18 has 18 dBi gain. Measuring 10" x 10" this antenna is extremely compact and toughened to stand up to all environments. The HG5158DP-18 operates from 5150 to 5850 MHz which is ideal for Point to Point applications where form factor is a concern.

The HG5158DP-18 from L-com has 17° Horizontal Beamwidth and 17° Vertical Beamwidth patterns with Vertical + Horizontal polarization and features 2 x Type N Female connectors. The 5150-5850 MHz HG5158DP-18 is rugged and weatherproof. The 2-port flat panel antenna features a heavy-duty UV-resistant plastic radome for all-weather operation.

The 2 x Type N Female connectorized HG5158DP-18 antenna from L-com has mounting bracket and hardware included which makes this antenna very easy to install.

Features

  • Dual Polarity feed system in single enclosure
  • Includes tilt and swivel mast mounting
  • Two integral N-Female connectors
  • UV-resistant radome for all-weather operation
  • MIMO - Multiple-Input and Multiple-Output

Application

  • 5.3 GHz, 5.4 GHz and 5.8 GHz Band Applications
  • IEEE 802.11a Wireless LAN
  • 5.8GHz UNII and ISM Applications
  • Unlicensed European 5.4 GHz Band Applications
  • WiMAX Technology
  • Wi-Fi Systems
  • 5.8 GHz Wireless Video Systems
