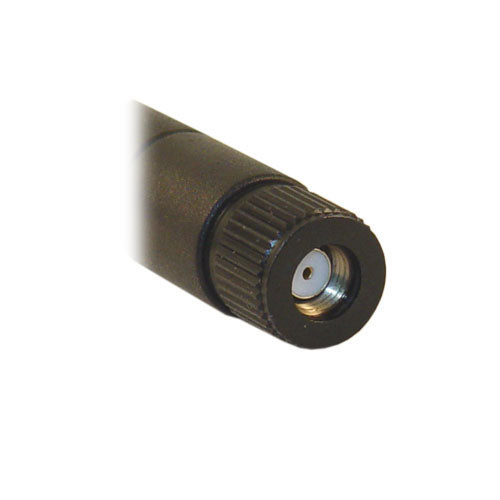

2.4 GHz 5 dBi Rubber Duck Antenna - RP-SMA Plug Connector

This compact 2.4 GHz omni-directional "rubber-duck" antenna provides broad coverage and 5.5 dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs, Bluetooth® and other WLAN applications.

Measuring 8.0 inches long, this flexible antenna features a tilt-and-swivel Reverse-Polarity SMA Plug connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with reverse-polarity SMA connectors including D-Link®, Linksys® WET11 and others.

Application Note: This antenna is not for use with U. S. Robotics® RP-SMA equipped devices.

For additional information and complete specifications, click on the Data Sheet link in the Downloads tab.

Features

• Flexible "Rubber Duck" antenna
• Optional Magnetic Mount Available
• High Performance - 5 dBi
• Reverse Polarity SMA Plug Connector
• Tilt and swivel design

Application

• 2.4 GHz ISM Band
• IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n (Pre-N, Draft-N) Applications
• Public Wireless Hotspot
• Wireless Video Systems
• Multipoint and Mobile Applications & Bluetooth®
