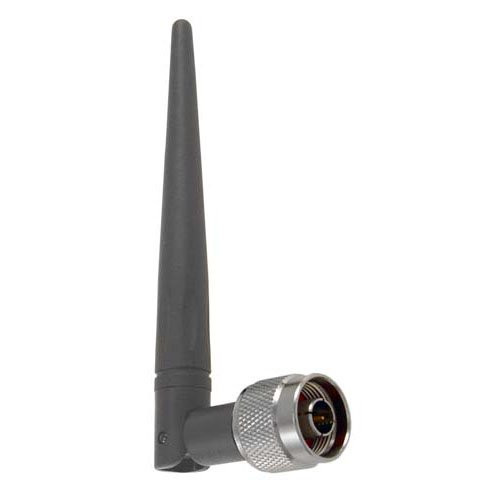

2.4 GHz 3 dBi Rubber Duck Antenna - N-Male Connector

This compact 2.4 GHz omnidirectional "rubber duck" antenna provides broad coverage and 3 dBi gain. It is a coaxial sleeve design with an omnidirectional pattern. It is ideally suited for IEEE 802.11b/g wireless LAN and other WiFi applications.

Only 5.8 inches long, this flexible antenna features a tilt-and-swivel N-Male connector, allowing it to be used vertically, at a right angle or any angle in between. It is suitable as a replacement antenna for many access points and radios that are equipped with N-Male detachable antennas. (Note: The HG2403RD is used as a "replacement" antenna rather than a "range extender" antenna. It should yield similar range to most radio's stock antennas).

This antenna is also available with the following connectors, SMA Male (HG2403RD-SM), RP-SMA Plug (HG2403RD-RSF) and RP-TNC Plug (HG2403RD-RTF).

For additional information and complete specifications, click on the data sheet link in the Downloads tab.

Features

• Compact size, only 5.8" long
• Flexible "Rubber Duck" antenna
• N-Type Male Connector
• Optional Magnetic Mount Available
• Tilt and swivel design

Application

• 2.4 GHz ISM Band
• IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n (Pre-N, Draft-N) Applications
• Multipoint and Mobile Applications & Bluetooth®
• Public Wireless Hotspot
• Wireless Video Systems

Downloads:

• Datasheets
• 2D Drawing (.pdf)
• 3D CAD Model (.step)
