2.4 GHz 17 dBi (3) 120° Omni Sector - 1 Input to 3 Antennas

The HyperLink Sectorized Omni Array features this high performance 2.4 GHz 120° sectorial antennas. Each of the three antennas in this array can be adjusted individually (0-20° up or down tilt) to compensate for the geography of the installation location. This helps ensure maximum coverage of the array for service providers in the 2.4 GHz ISM band.

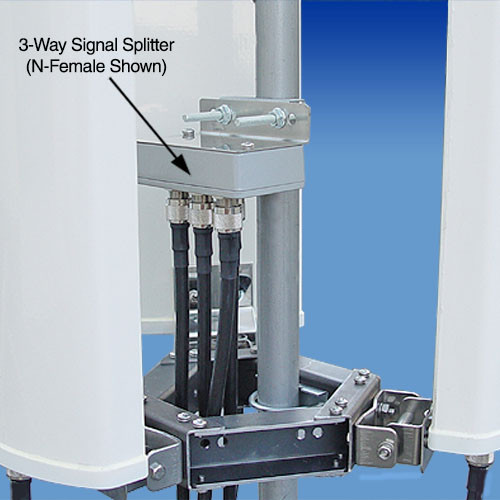

Ideal for smaller applications, this sectorized omni array is available as a single fed system (1 input into 3 antennas). Since each antenna is fed from a 3-Way signal splitter, only a single radio/amplifier is required. As the system grows, additional capacity can be added by simple adding more base station radios and bypassing the splitter's array, thus feeding each antenna from a separate radio.

The sectorized omni array is designed for all-weather operation. It features heavy-duty plastic antenna radomes and stainless steel mounting systems. The array can be mounted directly onto masts 1¼" to 2" (31.7 to 50.8 mm) in dia using the provided U-Bolts. The mounting bracket can also accept 3" (76.2 mm) U-Bolts (not included) for larger masts.

For additional information and complete specifications, see the data sheet in the Downloads section.

Features

• Also available in individual fed models
• High performance sectorial antennas
• Single fed model feature 3-Way signal splitter and jumper cables (included with Array)
• Tri-Antenna Array with 360° coverage
• 0-20° mechanical up/down tilt

Application

• 2.4 GHz ISM Band
• IEEE 802.11b, 802.11g, 802.11n Wireless LAN
• Wireless Broadband Systems
• Point to Multi-Point Systems

Downloads:

• User Manual
• 2D Drawing (.pdf)
