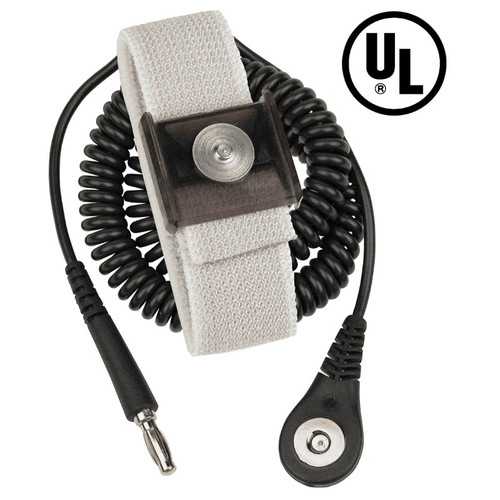

Wrist Strap, Magsnap, Elastic Adj, White, 6' Cord, Clean Pack

Class 1000 Packaging

• Double Bagged
  Controls contamination of contents before the product is transferred to the cleanroom.
• Cleaned and Packaged in a Class 1000 Controlled Environment
  Removes contamination from products for use in clean environments.

Wrist Strap Kit

• Elastic Expansion Wristband and Coil Cord
  Creates a path-to-ground for an operator with resistance <3.5 X 10⁷ ohms per the personal grounding required limits of ANSI/ESD S20.20
• Magnetic Connection Between Wristband and Coil Cord
  Superior electrical connection to eliminate intermittent failures of traditional snaps; extends the lifespan of the wrist strap. Maintains 1-5 pound release to prevent accidental disconnects and to provide increased safety.

Elastic Expansion Wristband

• Floating Cam Lock Size Adjustment
  Allows for easy size adjustment and band material replacement.
• Knitted Band Material with Conductive Silver Plated Polypropylene
  Creates a better electrical connection with operator especially for dry skin or in dry environments.

Six Foot (12 Inches Of Coils) Coil Cord

• Strain Relief Tests Over 1 Million Cycles; 62 Times The Minimum Requirement per ANSI/ESD S1.1
  Eliminates intermittent failures that occur with less durable cords and extends the lifespan of the wrist strap.
• Patented¹ Spring Supported Contoured Banana Plug
  Designed to prevent wear to banana springs that will leads to accidental disconnects from banana jacks.
• Low Profile Snap Design
  Prevents cord from being disconnected or getting in the way of operator’s work area.
• Date Coded
  Provided so that the lifespan of the product may tracked and to ensure quality control.
• UL Listed
  Design evaluated by Underwriters Laboratories.
• Made in the United States of America
  This item is made and stocked in Chino, CA

References

1. Patent Number 5,951,337 - Damage-Resistant Electrical Connector Plug and Combination

Downloads:

• Jewel MagSnap® White Elastic Wrist Straps
